UE4默认的图片控件只支持静态图。

资源只可以使用UTexture2D与PaperSprite两种格式。

虽然可以使用材质来实现动态效果，不过不如直接使用Flipbook来的方便。

下面上代码：

UCLASS()

class TEST_API UAnimatedImage : public UImage

{

           GENERATED_BODY()

public:

           UFUNCTION(BlueprintCallable, Category = Animation)

                     void Play();

           UFUNCTION(BlueprintCallable, Category = Animation)

                     void Stop();

           virtual void SynchronizeProperties();

           UFUNCTION(BlueprintCallable, Category = "Appearance")

                     void SetPaperFlipbook(UPaperFlipbook* Flipbook);

           UFUNCTION(BlueprintCallable, Category = "Appearance")

           void SetBrushFromSprite(UPaperSprite* Sprite, int32 Width, int32 Height);

protected:

           UPaperFlipbook* PaperFlipbook;

           void TimerTick();

           FTimerHandle TimerHandle;

           UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Animation)

                     int32 CurrentFrame = 0;

           UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Animation)

                     int32 TotalFrames = 0;

           UPROPERTY(EditAnywhere, BlueprintReadOnly, Category = Animation)

                     int32 FramesPerSecond = 15;

};

void UAnimatedImage::Play()

{

           if ( (!TimerHandle.IsValid()) && (IsValid(PaperFlipbook)) )

           {

                     GetWorld()->GetTimerManager().SetTimer(

                                TimerHandle,

                                this,

                                &UAnimatedImage::TimerTick,

                                1.0f / FramesPerSecond,

                                true

                     );

           }

}

void UAnimatedImage::Stop()

{

           if (TimerHandle.IsValid())

           {

                     GetWorld()->GetTimerManager().ClearTimer(TimerHandle);

           }

}

void UAnimatedImage::SynchronizeProperties()

{

           Super::SynchronizeProperties();

}

void UAnimatedImage::SetPaperFlipbook(UPaperFlipbook* Flipbook)

{

           if (PaperFlipbook != Flipbook)

           {

                     if (IsValid(Flipbook))

                     {

                                PaperFlipbook = Flipbook;

                                TotalFrames = PaperFlipbook->GetNumFrames();

                                FramesPerSecond = PaperFlipbook->GetFramesPerSecond();

                                CurrentFrame = 0;

                     }

           }

}

void UAnimatedImage::SetBrushFromSprite(UPaperSprite* Sprite, int32 Width, int32 Height)

{

           if (IsValid(Sprite))

           {

                     const FSlateAtlasData SpriteAtlasData = Sprite->GetSlateAtlasData();

                     const FVector2D SpriteSize = SpriteAtlasData.GetSourceDimensions();

                     FSlateBrush TempBrush;

                     TempBrush.SetResourceObject(Sprite);

                     Width = (Width > 0) ? Width : SpriteSize.X;

                     Height = (Height > 0) ? Height : SpriteSize.Y;

                     TempBrush.ImageSize = FVector2D(Width, Height);

                     SetBrush(TempBrush);

           }

}

void UAnimatedImage::TimerTick()

{

           if (IsValid(PaperFlipbook))

           {

                     UPaperSprite* tempSprite = PaperFlipbook->GetSpriteAtFrame(CurrentFrame);

                     if (IsValid(tempSprite))

                     {

                                SetBrushFromSprite(tempSprite, 0, 0);

                                CurrentFrame++;

                                if (CurrentFrame > TotalFrames - 1) CurrentFrame = 0;

                     }

                     else

                     {

                                CurrentFrame = 0;

                     }

           }

}

使用方法：

编译后会在UMG中发现这个控件。

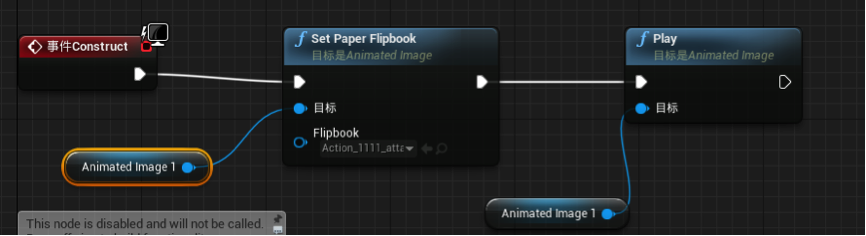

将其拖入界面中，调用以下蓝图就可使用。

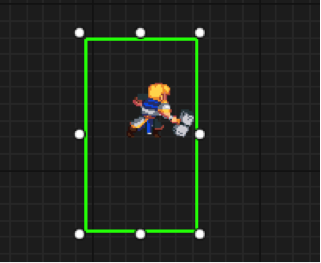

这样Animated Image里面的角色就会动啦。

游戏开发组    供稿
